Findings¶

约 707 个字 5 张图片预计阅读时间 4 分钟

Refinement-based approaches such as NSG and NN-Descent use the most memory to build the index, because they first build an approximate KNN graph
Reverse edge addition to the Layer 0 of MIRAGE for optimal search performance.
When the out-degree is the same, the hierarchical solution is able to achieve better search performance due to providing better entry points to the bottom layer than randomly choosing a start point.

having longer edges that can traverse the whole graph quickly and provide good entry points for the lower layer
The reason for the fewer computations is because MIRAGE has a lower average out-degree than HNSW at Layer 0.
HNSW does not benefit from hierarchy due to a small subset of well-connected nodes (hubs)，while Layer 0 and upper layers of MIRAGE are constructed using different approaches.

Highlights¶

We propose MIRAGE, a new approach to constructing graph-based indexes using refinementbased construction to create the bottom layer of the graph, and then building layers above in an increment-based manner, with upper layers containing fewer points and longer links, and lower layers containing more points and shorter links.

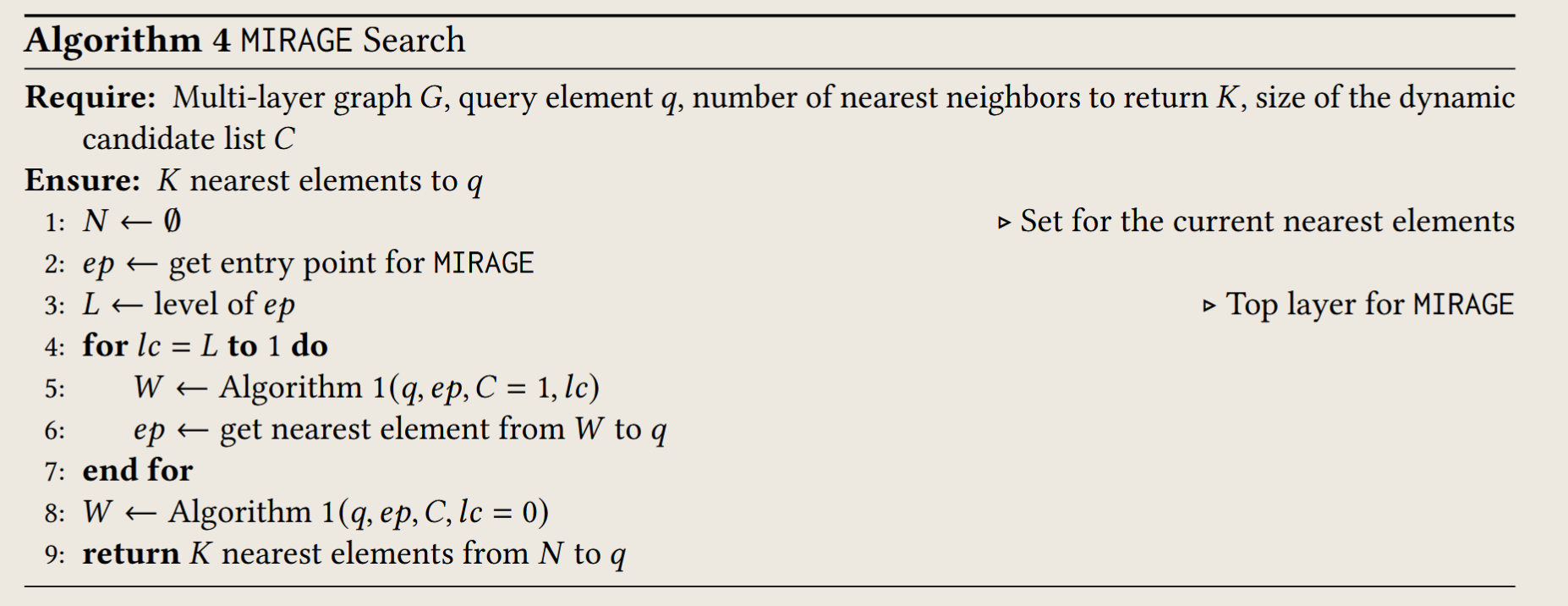

The search uses a greedy algorithm starting from the highest layer and continuing down to the lowest layer.

BackGround¶

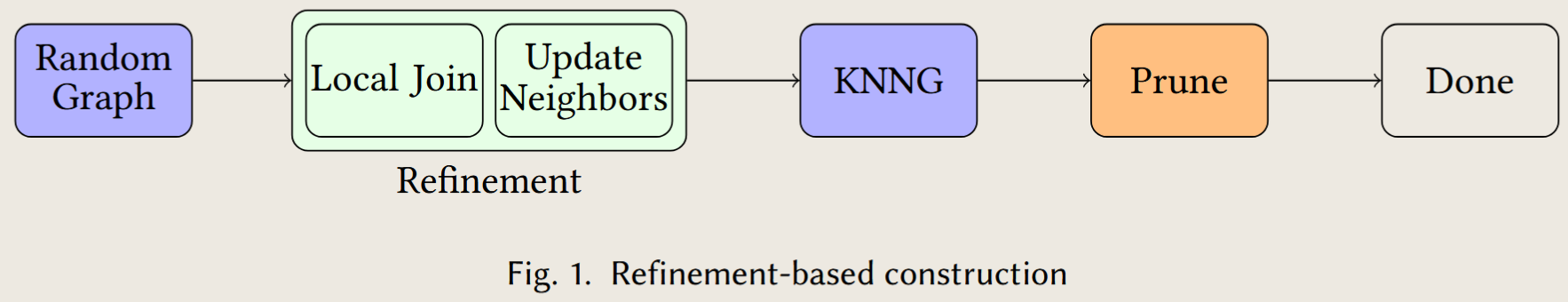

Index construction is fast primarily because the randomly-connected graph is available at the start and is refined iteratively to improve its quality, rather than building the graph incrementally. Now most algorithms construct a approximate k−nearest neighbor graph (kNNG) not a K-Graph, because K-Graph has a loss of navigability caused by too high of an out-link density.

the neighbor of my neighbor is likely to be my neighbor

NSG first builds a graph using NN-Descent and then prunes using an edge selection strategy based on the RNG rule.

Increment-based Graph Construction¶

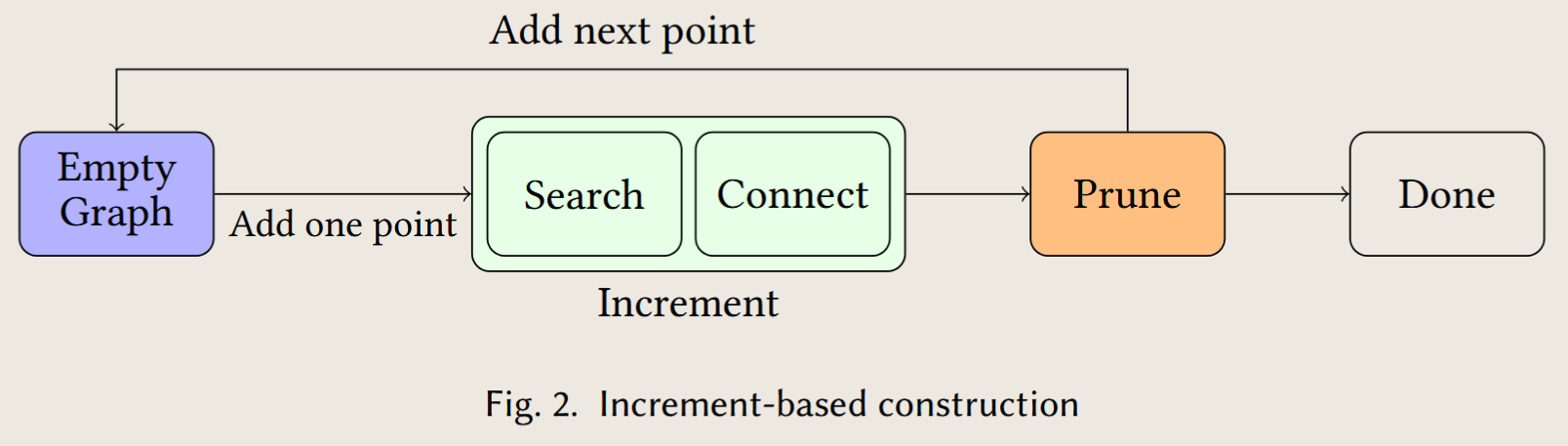

This kind of graph starts with an empty graph and treats every point being added as a query, performing ANNS on the current graph to find the k nearest neighbors of the newly inserted point.

Motivation¶

Efficient construction
Global navigability
Local precision

Overview¶

MIRAGE indexes all points starting with a randomly connected graph and progressively refines it while pruning at the same time.

MIRAGE addresses global navigability and local precision by incrementally building upper layers with a subset of points that contain long-range links that enable rapid traversal across the graph.

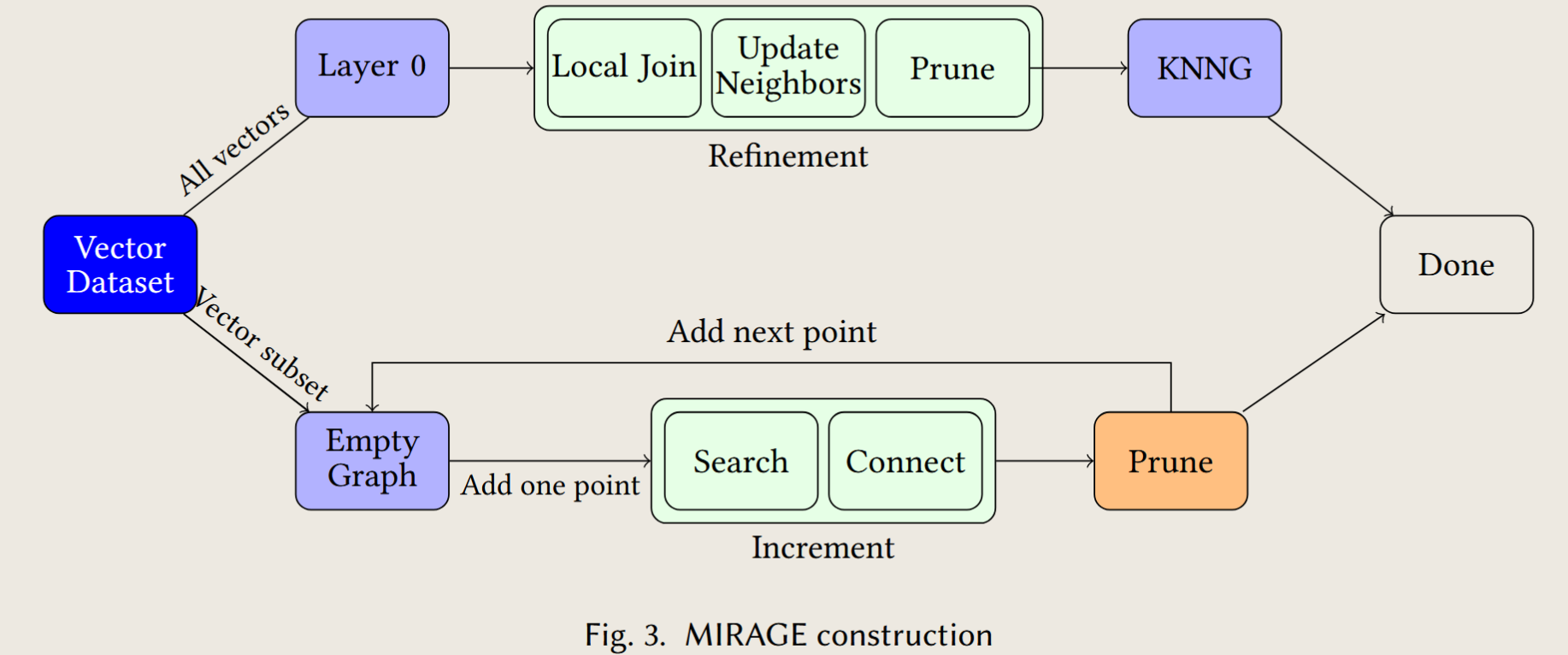

MIRAGE builds a hierarchical structure, where the bottom layer (Layer 0) of the graph is constructed using a refinement-based approach, and then creates layers on top (Layers 1 to N ) following an increment-based approach.

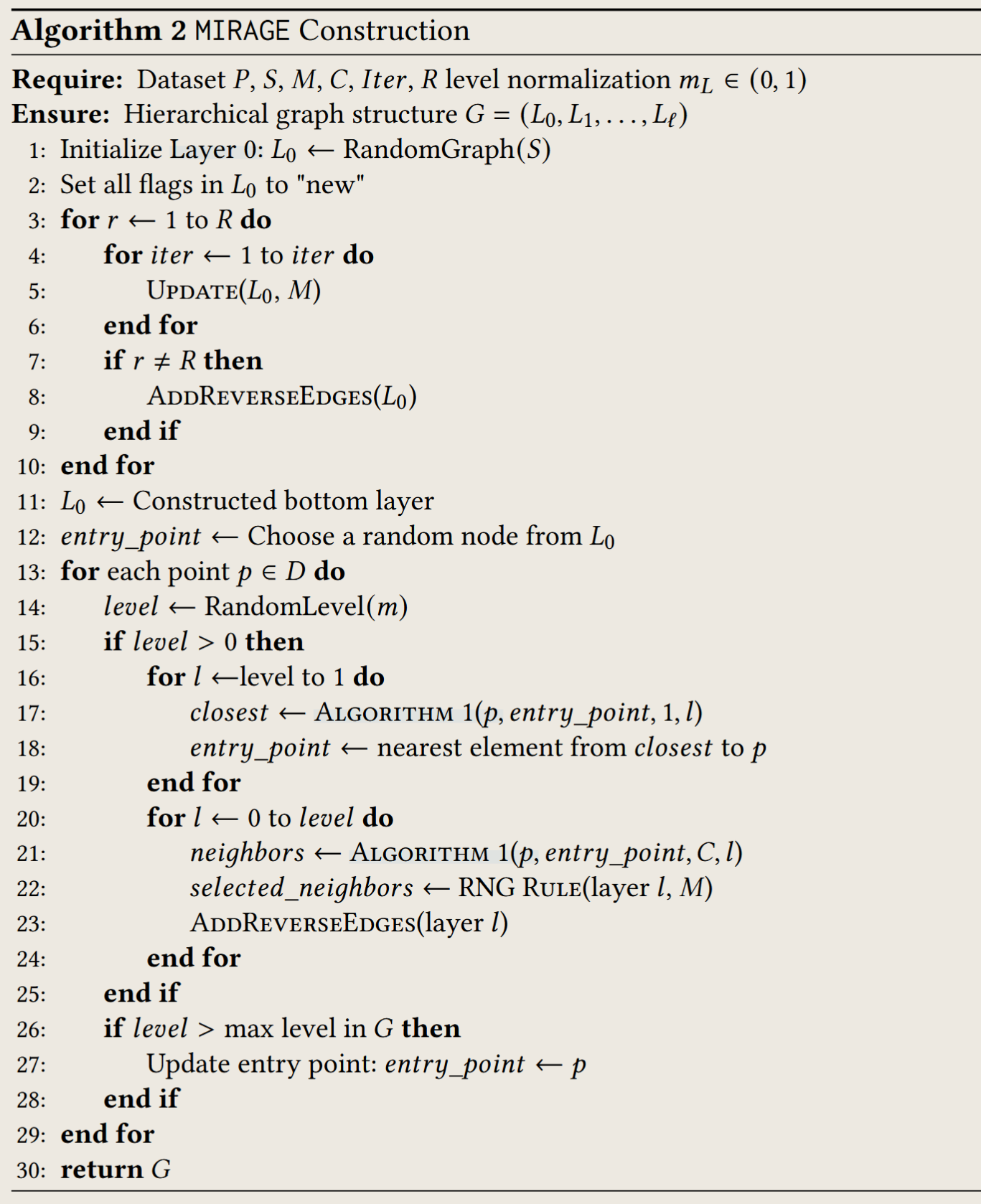

Graph Construction¶

Layer 0: The bottom layer is constructed using a refinement-based approach, where the graph is built from a randomly connected graph and refined iteratively to improve its quality.
MIRAGE finds neighbors using a traditional NN-Descent algorithm and prunes edges at the same time using the RNG rule.

use insights from RNNDescent to first check whether the RNG rule is satisfied before adding the edge
maintain a flag for each vertex indicating whether it is "new" or "old" to help eliminate duplicate distance comparisons of the same vertices
adds reverse edges to complete the bottom layer of the graph
limit the maximum out-degree of the constructed graph, pruning every vertex in Layer 0 down to M neighbors using the RNG rule

Layer 1 to N: The upper layers are constructed incrementally, where each layer contains a subset of points that are selected based on their distance to the points in the lower layer.

Each point in the dataset is assigned a layer by the distribution and then first inserted at the corresponding layer
it finds its M nearest neighbors using Algorithm 1, moves down a layer and repeats the same process stopping after being inserted at layer 1
selecting neighbors at each layer, if the value of M is exceeded for any vertex, we use the RNG rule to prune edges.
